BENEFITS
Optimize the benefits of our Wire Management Solutions. Each solution is designed to save you money, decrease your installation time, and improve safety on the job site. Call a Solutions Manager today!
Education & Awareness
Discover new solutions and workflow possibilities while integrating new products, services, and planning tools.
Effective pre-con planning
Select the right solutions for your job by determining optimal pull and feed locations and associated equipment.
timely execution support
Receive materials on time based on pre-con planning and take advantage of field training and solution execution checklists.
learning, improving, & extending
Optimize solutions for compounded benefits, increased safety, productivity, and profitability.
Our CDC Wire Room
Our newly-built Wire Room is ready to serve you! Our 18k sq ft area is dedicated to an inventory of over 470 color wire SKU’s and hosts a team that processes over 350 cuts in a day. We provide custom cuts, paralleling services, pulling heads, and Southwire SIMpull REEL™ solutions to help save you time and labor while reducing waste. Experience the difference today!
Southwire Solutions
SIMpull REEL™
- Stack parallels on top of one another to reduce the number of total reels needed
- Pre-installed pulling heads
- Significantly easier and safer to move reels
- Reels fit through standard 36” doorways
- Allows reel to be placed right next to feed point conduit
SIMpull Heads®
- Access to pre-installed and field-installable pulling grip.
- Low profile head which allows easier to pull through bends and conduit.
- Available in staggered lengths.
SIMpull Heads®
- Access to pre-installed and field-installable pulling grip.
- Low profile head which allows easier to pull through bends and conduit.
- Available in staggered lengths.

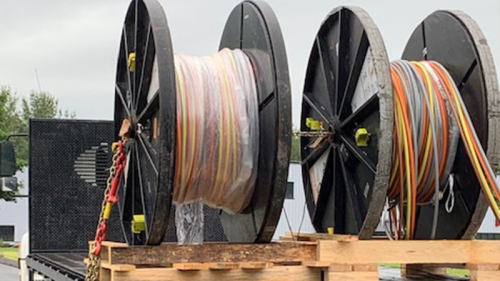

REEL Solutions Truck
- Pull wire directly from our flatbed truck to reduce the labor needed to complete the pull
- Flatbed trucks can hold 1-4 wire reels
SIMpull Solutions Configurator®
- Easily create and make updates to the wire feeder schedule by desktop, laptop, or tablet
- Configure correct legs and parallels to be delivered with our SIMPULL Reels and pulling heads
SIMpull Solutions Configurator®
- Easily create and make updates to the wire feeder schedule by desktop, laptop, or tablet
- Configure correct legs and parallels to be delivered with our SIMPULL Reels and pulling heads
wire information
Wire Size & Colors
Aluminum XHHW Wire
- BLACK, BLUE, RED, WHITE, BROWN, ORANGE, YELLOW, and GRAY
- ALUM 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 400, 500, 600, and 750
- ALUM 4 and 6 BLACK ONLY
- ALUM GREEN in 6, 4, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 500, and 600
Copper XHHW & THHN Wire
- BLACK, BLUE, RED, WHITE, BROWN, ORANGE, YELLOW, and GRAY
- COPPER – 8, 6, 4, 3, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, 500, and 600
- COPPER 400 – BLACK, BROWN, ORANGE, YELLOW, and GRAY COPPER
- GREEN in 8, 6, 4, 3, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, and 500
Wire FAQ's
Orders placed by 5 PM are expected to be completed for the next day. (*Please confirm with your sales rep for more information on current workload status.)
Yes, we can cut and parallel wire.
Yes, please ask your sales rep and we can provide pulling heads on all cut orders.
- Aluminum & Copper XHHW Wire
- Copper THHN Wire
Aluminum XHHW Wire
- BLACK, BLUE, RED, WHITE, BROWN, ORANGE, YELLOW, and GRAY
- ALUM 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 400, 500, 600, and 750
- ALUM 4 and 6 BLACK ONLY
- ALUM GREEN in 6, 4, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 500, and 600
Copper XHHW
- BLACK, BLUE, RED, WHITE, BROWN, ORANGE, YELLOW, and GRAY
- COPPER – 8, 6, 4, 3, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, 500, and 600
- COPPER 400 – BLACK, BROWN, ORANGE, YELLOW, and GRAY COPPER
- GREEN in 8, 6, 4, 3, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, and 500
Copper XHHW
- BROWN, ORANGE, YELLOW, and GRAY
COPPER – 500 and 600
case studies
Wire Solution Case Studies
View our job site labor and cost-saving case studies. Learn how much you can save with our Southwire Solution services!
- SIMpull REEL™ Case Study
- SIMpull REEL™ with Puller Case Study

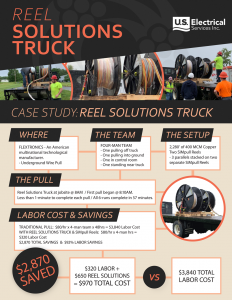

- REEL™ Solutions Truck Case Study
